Information

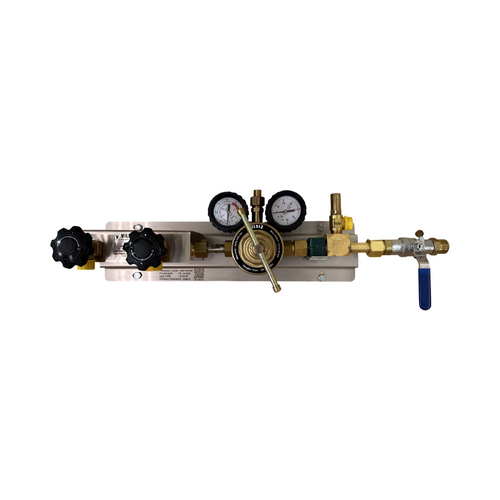

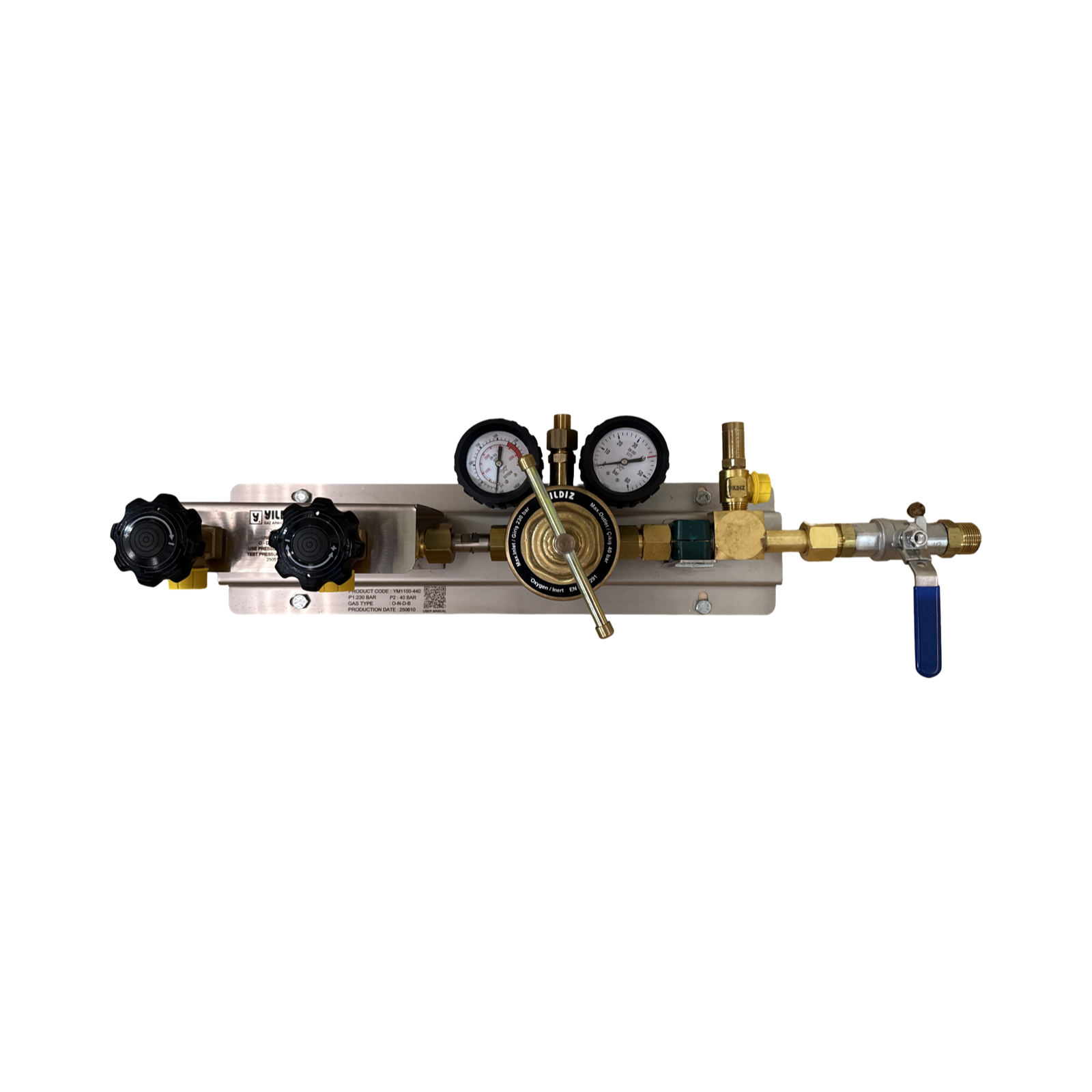

In enterprises where the central system is installed and available, the pressure of the gas coming from the source (fixed or mobile, tube pallets, cylinders or special containers) is reduced to the pressure level required by the central system with the high-pressure manifold with a regulator.

Features:

• It offers high compressed gas (O, D, N, CO2, M, H) up to 550 Nm3 /h and up to 300 bar inlet pressure.
• A maximum inlet pressure of 230 bar is reduced to outlet levels of 10 bar, 20 bar, or 40 bar.
• Equipped with 2 cylinder connections with valves, suitable for use with individual cylinders or cylinder bundles.
• Extension connections on the inlet side allow additional cylinders or bundles to be connected to the system by purchasing extra cylinder valve connections.
• All components of the system are mounted on a high-strength stainless steel sheet.
• In oxygen systems, a flashback arrestor is installed before the ball valve on the outlet line.
• Check valves located at both cylinder connection valves prevent backflow of gas, thereby enhancing system safety.
• Thanks to its compact design, it occupies minimal space while its cost-effective structure reduces investment expenses.
• Safety relief devices located in and after the pressure regulator ensure that any excess pressure is safely vented in case of malfunction.

Materials

Reference Standards

• ISO 7291: Gas welding equipment - Pressure regulators for manifold systems used in welding, cutting and allied processes up 300 bar
• ISO 5171: Gas welding equipment – Pressure gauges used in welding, cutting and allied processes
• ISO 9539: Gas welding equipment - Materials for equipment used in gas welding, cutting and allied processes
• ISO 9090: Gas tightness of equipment for gas welding and allied processes.


Technical Specifications
